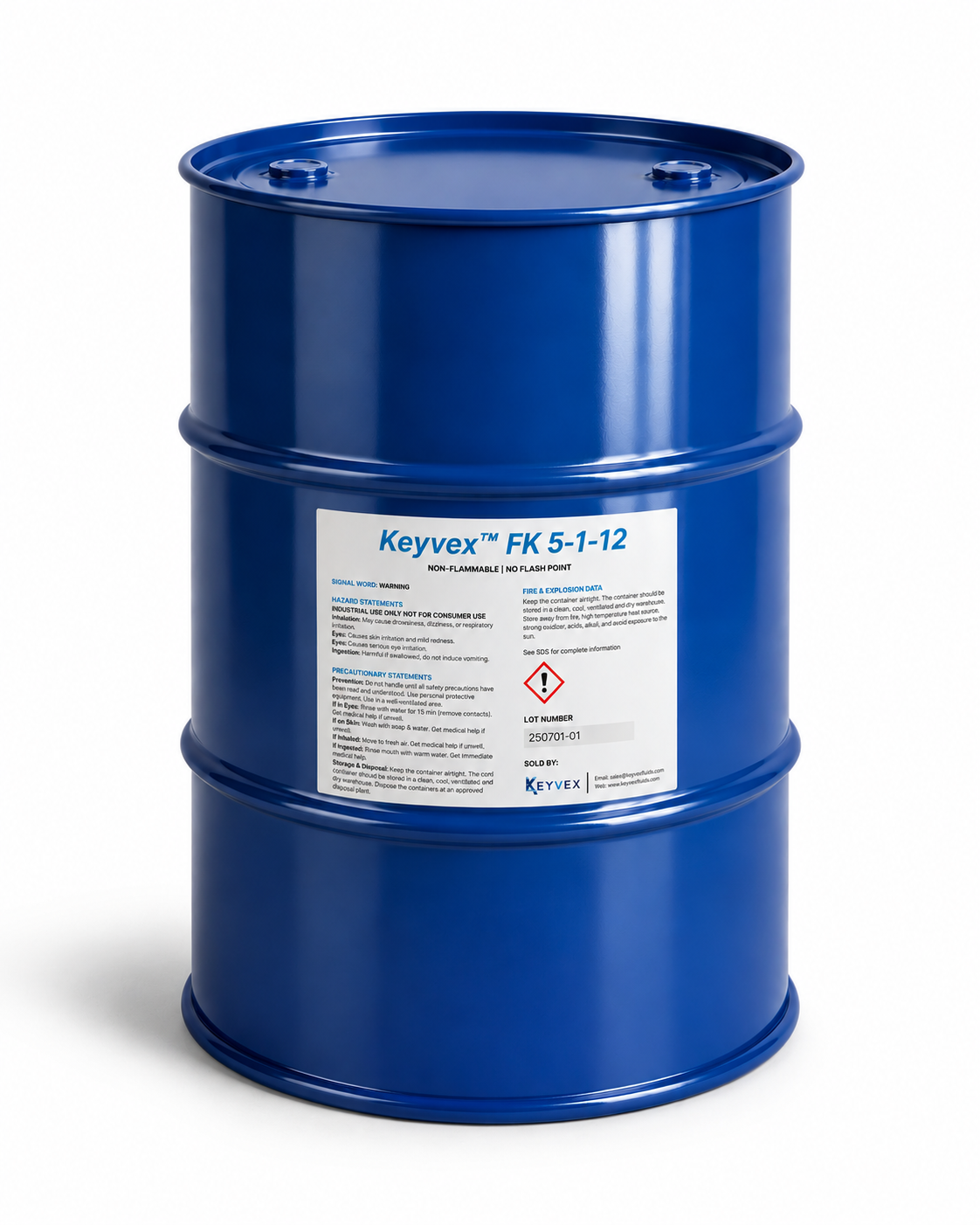

Keyvex™ FK 5-1-12
Keyvex™ FK 5-1-12 is a fluorinated ketone fluid developed for clean agent fire suppression systems. It provides a next-generation alternative to traditional halon and HFC-based fire suppression agents and is designed as a direct replacement for 3M™ Novec™ 1230. The fluid extinguishes fires rapidly by removing heat without damaging sensitive electronics or leaving residue.
Applications:
Fire Suppression
- Data centers, server rooms and telecommunications equipment rooms
- Electrical control rooms, switchgear and power distribution systems
- Battery energy storage systems and EV battery protection
- Sensitive electronic and high-value control equipment
- Marine control rooms and critical enclosed spaces
- Museums, archives and other high-value asset protection areas
- High fire suppression efficiency: minimum extinguishing concentration of 3.5% for Class A fire and 4.5% for Class B fire.
- Excellent electrical insulation: passes 110 kV electrical insulation performance test
- Effective cooling performance
- Evaporates rapidly without leaving residue or damaging sensitive equipment
Property
Value
Appearance
Colorless, transparent liquid
Molecular Weight
316
Boiling Point, °C
49.2
Freezing Point, °C
-108
Liquid Density (25°C), g/mL
1.601
Vapor Pressure (25°C), mmHg
44.4
Gas Density (25°C), g/mL
0.0136
Dielectric Strength (2.5 mm), KV
74.6
Atmospheric Lifetime, days
5
Metals: Compatible with stainless steel, carbon steel, aluminum,copper, brass, and nickel alloys.
Plastics: PTFE, PEEK, PFA, FEP, PVDF, PE, PP, PVC, and ABS.
Elastomers: FKM (Viton™), FFKM, EPDM, silicone, NBR, and neoprene.
Ceramics & glass: Compatible with borosilicate glass, soda-lime glass, fusedsilica/quartz, alumina, zirconia, silicon carbide, and technicalceramics.
Related Products:
Let’s Find the Right Solution for Your Process
Our technical team can help identify the appropriate Keyvex equivalent based on your current fluid, application, and performance requirements.
